Racepak G2X - G2X Pro   click here for G2X Pro
G2X

Internal Sensors:
- Battery Voltage
- Longitudinal g-meter (accel and decel)
- Lateral g-meter (side-to-side motion)
- GPS

Channels: V-Net: 12, Internal: 4

Sample Rates: V-Net: up to 100 per second

Weight: 13 oz. - Logger; 1 lb. 13 oz. - Kit

The G2X is has a sportsman price tag of $699 but contains professional features lie track map software, GPS, and 2 axis G-meters.

The G2X is able to interpret signals from GPS satellites to quickly establish the position and movement of the vehicle. From this monitored data other performance parameters can then be calculated. The G2X has the ability to provide you with track mapping, lap times/number/distance, segment times, miles per hour, lateral G-force, and acceleration G-force. With 128 MB of memory over 20 hours of GPS data can be stored.

You can add the dash shown below to monitor data real time and you can engine and chassis sensors like EGT, OBD-II, EFI, fuel/oil pressure, water temperature, shock travel etc.

Memory:                    Click here to see sample screens
SD memory card
Recording time depends on number of channels monitored and sample rates

Dimensions:
5.6” (L) 4.00” (W) 1.5” (H)

600-KT-G2XRND

G2X

WEB Price
$
699

       Weight
    2 lbs

    Call or Email about package deals with EFI - OBD2  interface kits, USM's and other sensors.

600-KT-G2XR

G2X with dash

WEB Price
$943

       Weight
    2 lbs



Dash

  • Automatically returns to Lap Number and Lap Time when vehicle stops
  • Automatically resets Lap Number and Lap Time when vehicle returns to track
  • Left and Right button toggle allows anytime viewing of data channels
  • Displays Lap Number and Lap Time each time user defined Start / Finish is passed
Big Features in a Small Package
  • Set Start / Finish with a single button
  • Extra Bright LED’s insures information is daytime visible even in open cockpits
  • Forward / Rewind of laptime information



Simple, 2 Button Programming Functions

Shop programming mode allows user to set:

  • Brightness
  • Return to factory settings
  • Tach signal
  • RPM source
  • Progressive shift light steps
  • Shift light RPM level for 6 gears
  • Speed source
  • Gear Indicator Ratios
  • GMT settings
  • MPH or KPH
  • Select on-track left and right display

Drive programming mode allows user to set:

  • Running Engine RPM
  • RPM 2 input for speed
  • Gear indicator using RPM and MPH
  • Re-orientation of accelerometers



User programmed Left and Right display allows user to “park” on any of the following 2 channels:
  • Engine RPM
  • Speed
  • Lap Time
  • Lap Number
  • Lap Difference
  • Accel G
  • Lateral G
  • Battery Voltage
  • Any 3 user defined external sensors

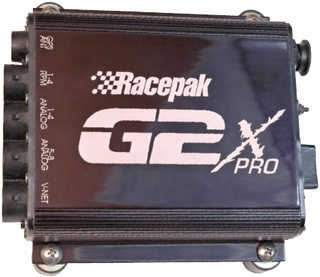

Racepak G2X PRO

G2XPRO

Channels:
71
V-Net: 59
Analog: 8 hard-wired
Digital: 4 hard-wired
Internal: 4

Sample Rates:
V-Net: up to 100 per second
Analog: up to 1000 per second
Digital: RPM and switch contacts up to 100 per second
Digital: Timing intervals within 1/1000th of a second

Memory:
SD memory card
Recording time depends on number of channels monitored and sample rates



The G2X-Pro builds on the G2X’s already impressive capabilities by allowing the user to monitor up to 71 channels, while providing lap and segment timing along with speed and track mapping functions through the use of GPS information. The G2X-Pro utilizes our exclusive V-Net plug and play technology which allows the data from up to 59 sensors to be transmitted via a single cable to the data recorder. The G2X-Pro brings with it more hardware in the form of our steering position, throttle position, and brake pressure package. This package provides easy installation through the use of a module that permits the user to terminate these sensor cables to the desired length. A single cable then links the module to the G2X-Pro recorder. Suspension and ride height data may also be obtained by purchasing the appropriate shock and ride height sensor package, which installs and transmits data in the same method as the steering/throttle/brake package. In addition, any Racpak sensor may be used with the G2X Pro.

The optional G2X-Pro display dash provides the ability to set start/finish from the dash, thus providing lap time and lap number without the use of trackside transmitters, onboard beacon receivers, or wheel speed sensors. In addition, the display dash can provide lap gain/loss, gear indicator, number of satellites, progressive shift light, battery voltage, speed, acceleration/lateral G-force, and engine RPM (with the appropriate tach signal). The dash also allows display of data obtained from external sensors.

Internal Sensors:
Battery Voltage
Longitudinal g-meter (acceleration and deceleration)
Lateral g-meter (side-to-side motion)
GPS

Dimensions:
5.350” (L) 5.5550” (W) 1.215” (H)

Weight:
17 ozs



600-KT-G2XPRO

G2X Pro

WEB Price
$1895

       Weight
    2 lbs

 Call or Email about package deals with EFI - OBD2  interface kits, USM's and other sensors.

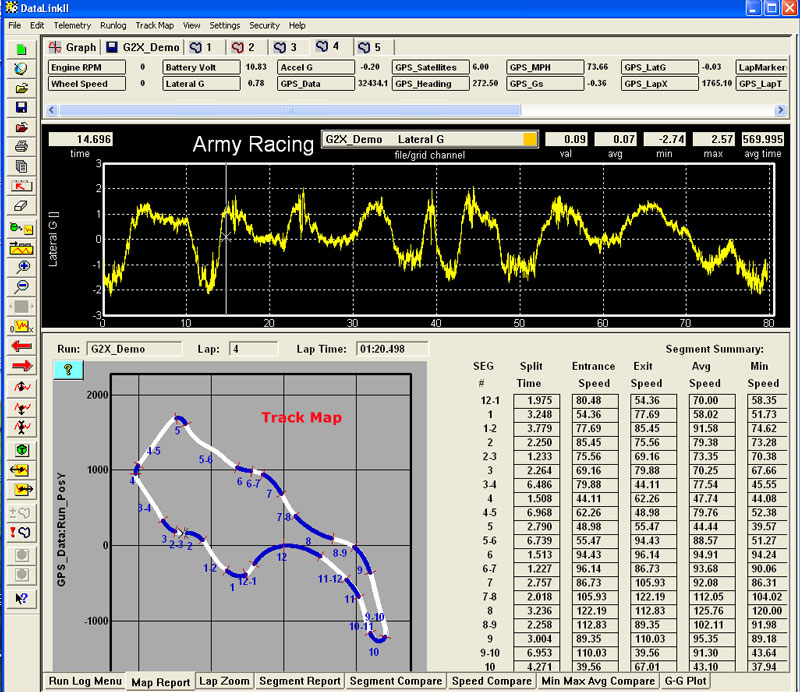

    Track Map and Segment Summary

map

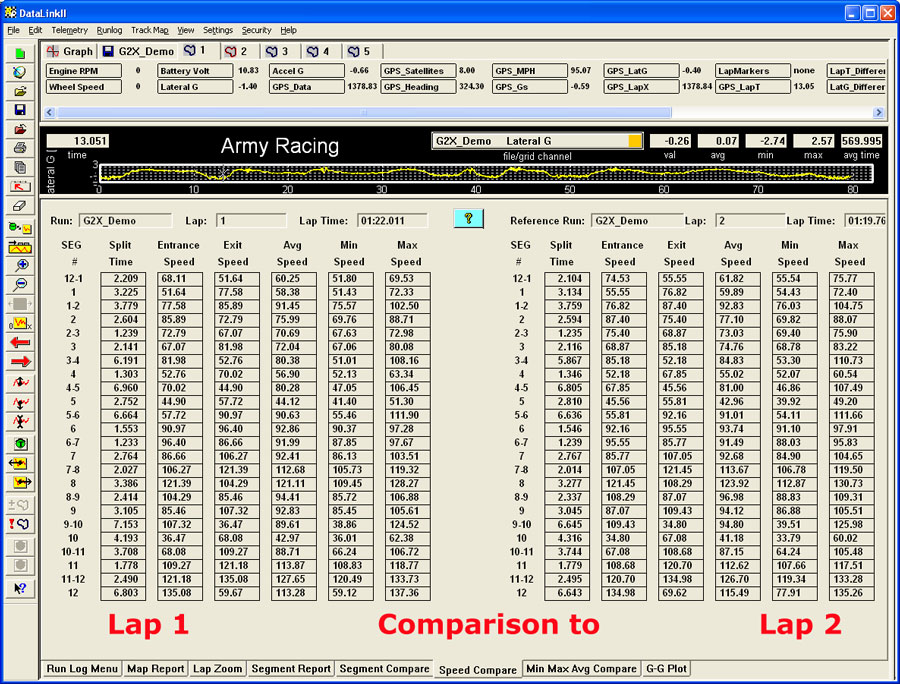

Lap Comparison

map
