Racepak EGT Components

Hardware

Exhaust Gas Thermocouples

V-Net systems and V-series recorders use two types of thermocouple setups to monitor the exhaust gas temperatures, one for an individual cylinder application and another for 3 or 4 cylinder groups.

Measuring the EGTs on a single cylinder application is accomplished using a thermocouple that features an inline, two-prong mini-connector. This connector provides the union between the thermocouple and the V-Net module. A selection of single cylinder thermocouples is shown on next page.

The most frequently used setup is the four thermocouples with junction box combination. This setup simplifies the installation on V8 engines by grouping the four thermocouples on each cylinder bank into a common junction box. The junction box then provides a single wire connection to the V-Net module to facilitate service work. A similar setup is available for V6 engines.

V-Net applications also use two styles of thermocouples. Four cylinder motorcycles make use of the .187-inch diameter tip bullet-style thermocouples, while Harley-Davidsons and the automotive applications employ the .250-inch diameter Stinger-style thermocouples. When replacing a thermocouple probe, use the illustration alongside the chart on the next page to determine the length you will need. The thermocouples used with the junction boxes, and some individual thermocouple components that are often requested, are shown in the chart below.

     4 EGT's & Controller 220-VP-TC-1357B

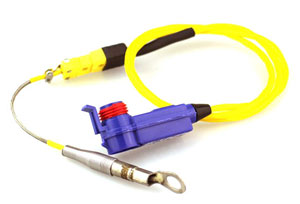

Single EGT & Vnet module 800-VP-TC-EGTn

Cable lengths on the single are: 27" of the stainless overbraid wire to the yellow plug and then 18" of the yellow wire to the V-net module totaling 45"



EGT

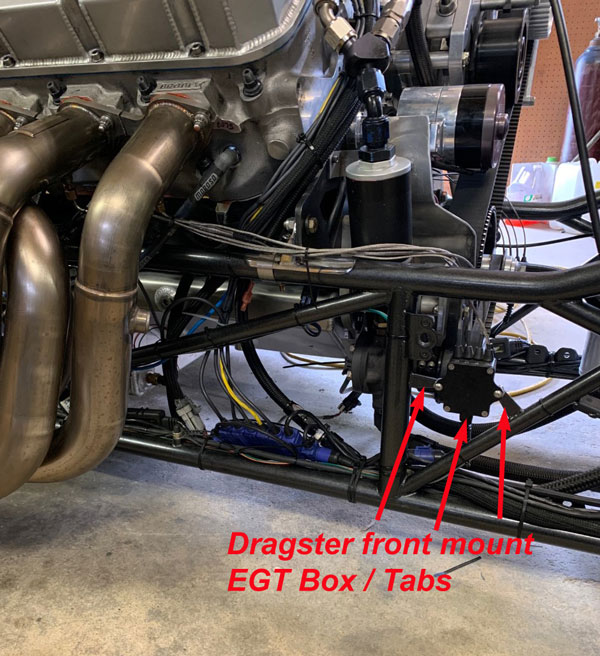

Cylinders are numbered expecting boxes to be mounted behind engine


 Single cylinder EGT    please put in note Cyl number if you don't want 1 220-VP-TC-EGT1
  $205
 4 EGT's cylinders 1,3,5,7 (standard BB Chevy kit) 220-VP-TC-1357B
  $720
 4 EGT's cylinders 2,4,6,8(standard BB Chevy kit) 220-VP-TC-2468B
  $720
 4 EGT's cylinders 1,3,5,7 (standard SB Chevy kit) 220-VP-TC-1357S
  $720
 4 EGT's cylinders 2,4,6,8 (standard SB Chevy kit) 220-VP-TC-2468S
  $720
4 EGT's cylinders 1,2,3,4 (standard Ford kit) 220-VP-TC-1234
  $720
4 EGT's cylinders 5,6,7,8 (standard Ford  kit) 220-VP-TC-5678
  $720
4 Motor Cycle EGT's cyl 1-2-3-4 3/16" comp fittings lenghts 13" 16' 19" 22" 220-VP-TC-1234M
  $720



Hardware

Mild stteel 1/4" EGT cap.

800-TX-WELD4

Mild stteel 1/4" weld bung

$4.75

800-TX-WELD4SS

Stainless steel 1/4" weld bung

$9.00

800-TX-WELD48

8 Mild stteel 1/4" weld bungs

$38

Mild stteel 1/4" weld bung

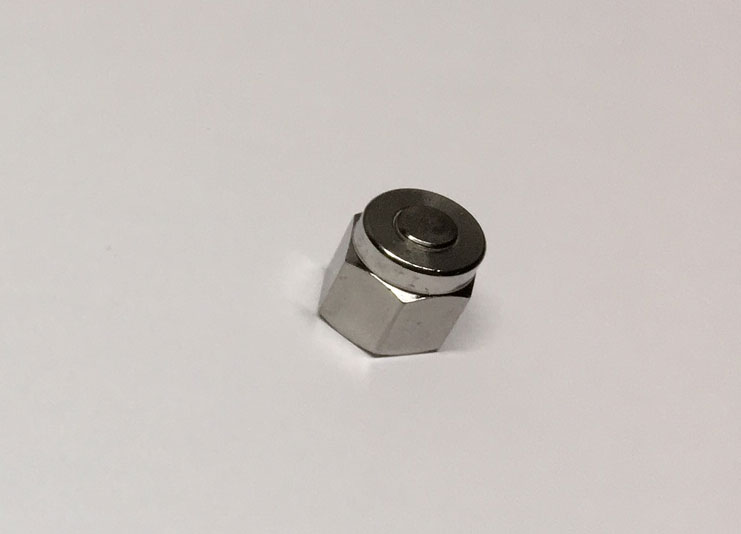

800-TX-CAP4

Mild stteel 1/4" EGT cap

$6.50

800-TX-CAP4-SS

Stainless steel 1/4" EGT cap

$9.00









Stick on temperature modules

Stick on temp sensorr

Requres separately purchased V-net module ($130).



800-TC-PD-600

Stick on temp sensor

$35

220-VP-TC-PD600

Module for above

$130



EGT Sensor Invformation

Length

.187” Dia. Bullets
(Motorcycle)

.250 Dia. Stingers
(Automotive)

9"



800-TC-B4-09

12”

800-TC-B3-12



13”



800-TC-B4-13

16”

800-TC-B3-16



18” CYL 7 & 8 in set2



800-TC-B4-18

19”

800-TC-B3-19



21”



800-TC-B4-21

22”

800-TC-B3-22



23” CYL 5 & 6 in set2



800-TC-B4-23

28” CYL 3 & 4 in set2

800-TC-B4-28
32” CYL 1 & 2 in set2

800-TC-B4-32


Set of 4 (one of each length)

800-TC-B3-SET



Set of 8 (two of each length)



800-TC-S4-SET1
(2 ea 9”, 13”, 18”, 23”)

800-TC-S4-SET2
(2 ea 18”, 23”, 28”, 32”)

800-TC-S4-SET3
(2 ea 13”, 18”, 21”, 28”)

MISC. PARTS

.187” DIAMETER TIP

.250” DIAMETER TIP

Nut & Ferrule Assembly



800-TX-NF4

Racepak weld-in EGT bung

EGT weld boss

800-TX-WELD4

Weldment Only (set of 4)



800-TX-WELD404

Weldment Only (set of 8)



800-TX-WELD408

Weldment Only, Stainless



800-TX-WELD4SS

Weldment Cap Only



800-TX-CAP4

Weldment, Nut, Ferrule Assy.

800-TX-WASM3

800-TX-WASM4







Cylinder Head Temperature Assembly                                                                                            800-TC-HT-ASM

This thermocouple-type sensor monitors the temperature of the metal, not the coolant. The ring-style probe has a 12” long cable that is terminated with a two pin male miniature connector.

Liquid Temperature Sensor, 0-300°F                                                                                                       810-TR-300

An alternative when monitoring liquid temperature is this sensor. When the thermocouple-style assembly cannot be used, usually due to space, this temperature sensor is employed. Sensor employs semi-conductor technology and installs into a 1/8” NPT fitting.

Manifold Temperature Assembly, Thermocouple-Style                                                                   800-TC-MT-ASM

This small open end thermocouple probe reacts quickly to changing temperatures, making it ideal for monitoring intake manifold temperatures. Right angle probe isattached using a 1/8” NPT compression fitting. Assembly features a 12” long cable with a two pin male mini-connector.

Miniature Thermocouple Connectors

Miniature Thermocouple Connector, Male                                                                                        800-TC-CON-M

Miniature Thermocouple Connector, Female                                                                                      800-TC-CON-F
